What Does a Leveling Kit Do? Truck Suspension Explained

You drive your brand-new truck off the lot, park it in the driveway, and notice something annoying. The rear end sits a solid two inches higher than the front. If you are wondering what does a leveling kit do, it exists to fix exactly this problem. Automakers design trucks this way on purpose to handle heavy payloads without sagging, a stance known as factory rake. But if you rarely max out your payload capacity, that nose-down look just limits your tire size and ground clearance.

What a Leveling Kit Actually Is

A truck leveling kit is a collection of suspension hardware designed to lift the front end of your vehicle by 1 to 3 inches. Our team in Irving installs these daily to correct the uneven stance that rolls out of the factory. By bringing the front bumper up to match the rear tailgate, the truck sits perfectly flat.

Consider a late-model Ram 1500 or a standard Ford F150. Both leave the assembly line with heavy factory rake. Installing a specific ford f150 leveling kit or ram 1500 leveling kit gives you the exact hardware needed to lift the front end without altering the rear suspension.

How It Works

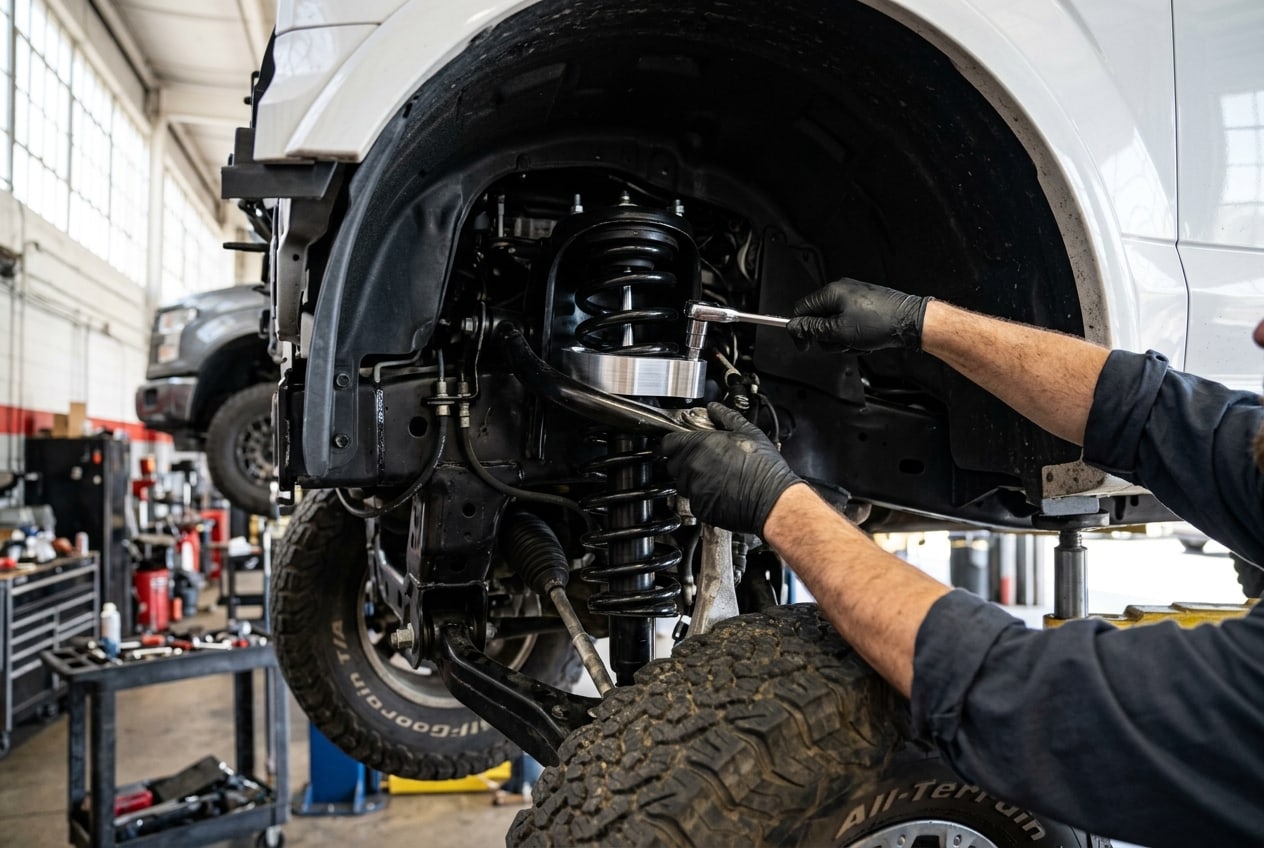

The hardware we use depends entirely on your specific front suspension setup. Trucks with coilover struts typically use a strut extension spacer that bolts directly to the top or bottom of the factory strut assembly. If you drive a heavy-duty truck with a solid front axle, we usually install a coil spring spacer that sits on top of the factory springs to push the chassis upward.

Think of the process like adding a thicker sole to the front of your shoes. You keep the original shoe design, but the extra material at the bottom changes your standing angle. Older trucks with torsion bar suspensions use aftermarket torsion keys that re-index the torsion bar, twisting it to raise the ride height.

Most setups fall in the 1.5-inch to 2.5-inch range, though some owners opt for a 3 inch leveling kit if they have severe factory rake. Pushing beyond three inches on a leveling kit puts excessive wear on your ball joints and CV axles. For heights above three inches, we strongly recommend a full truck lift kit installation to drop the front differential and correct the suspension geometry.

Why This Matters

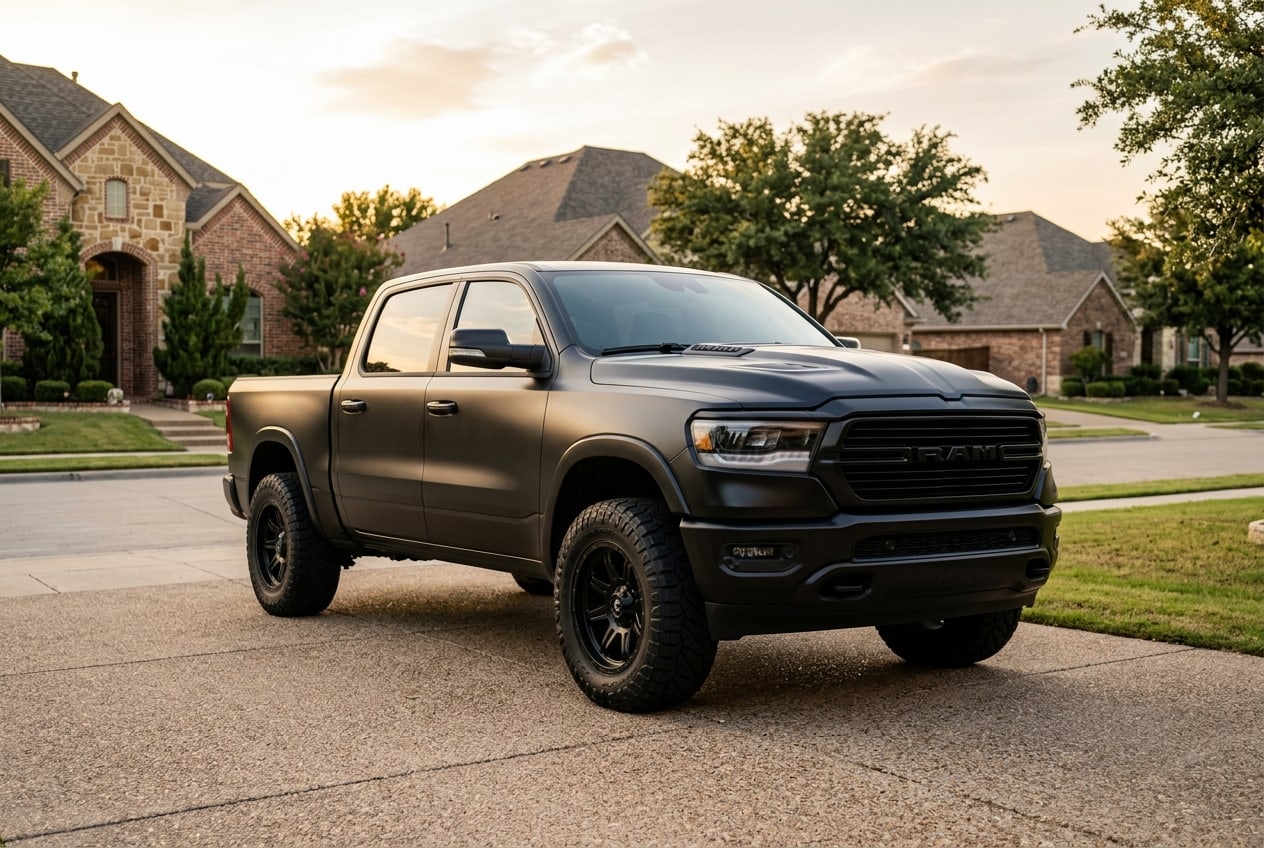

The primary reason drivers ask us what does a leveling kit do is tire clearance. Factory wheel wells easily fit 33-inch or 35-inch tires in the rear, but the lower front end causes those same tires to rub against the bumper or sway bar when you turn the steering wheel. Leveling the truck opens up the front wheel arches, allowing you to run a square tire setup without chopping up your fenders.

Ground clearance also improves at the front bumper. If you drive onto rocky job sites or hit steep approach angles on off-road trails, that extra two inches stops your front air dam from scraping the dirt. You gain practical clearance where the truck needs it most.

Finally, the visual upgrade completely changes the attitude of the vehicle. A 2 inch leveling kit removes the commuter-truck look and gives it a rugged, aggressive profile. It is the most cost-effective way to upgrade your truck's appearance before investing in custom truck and SUV wheels.

Common Misconceptions

• Myth: Leveling kits ruin your ride quality. Fact: High-quality coil spring spacers and strut extensions retain your factory springs and shocks, keeping your ride quality nearly identical to stock.
• Myth: You do not need an alignment afterward. Fact: Changing the front ride height alters your toe and camber angles; you absolutely must get an alignment to prevent destroying your front tires.
• Myth: Leveling kits increase your payload capacity. Fact: Hardware like a ram 2500 leveling kit changes the appearance and front clearance, but your factory payload and towing limits remain exactly the same.

Frequently Asked Questions

Will a leveling kit cause my truck to sag when I tow?

Yes, if you load a heavy trailer onto the hitch, the rear suspension will compress. Because you removed the factory rake, the rear end will now sit lower than the front under heavy load. If you tow heavy equipment regularly, we suggest adding rear air bags to maintain a flat stance while loaded.

How long does a leveling kit installation take?

Our shop usually completes a standard leveling kit installation in two to three hours. This timeframe includes the mechanical installation of the strut spacers or torsion keys, followed by a precise front-end alignment to ensure the truck tracks straight on the highway. If you are searching for leveling kit installation near me, always ask if the shop includes the alignment in their timeframe.

Do I need new shocks with a leveling kit?

You typically do not need to replace your factory shocks for a basic 2-inch lift using spacers. The factory shock stroke remains within its operational limits. However, if your factory shocks already have 60,000 miles of rough road abuse on them, replacing them during the leveling kit install saves you paying for labor twice.
